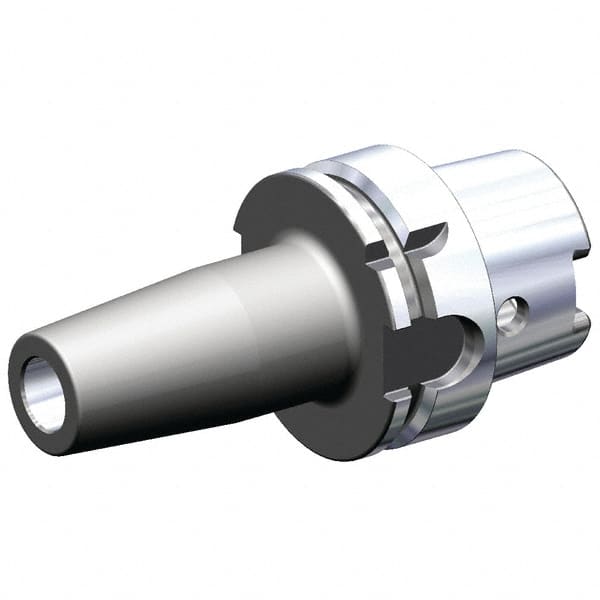

Kennametal - 100mm Shank Diam, 16mm Hole Diam, HSK100A Taper Shank Shrink Fit Tool Holder & Adapter - 100mm Projection, 27mm Nose Diam, 40mm Clamping Depth, Through Coolant
Item #: 39719836
Brand: Kennametal
Model #: 6201875
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Shank Diameter (Decimal Inch) | 3.9370 |
| Taper Size | HSK100A |
| Shank Diameter (mm) | 100.00 |
| Hole Diameter (Decimal Inch) | 0.6299 |
| Hole Diameter (mm) | 16.00 |
| Projection (mm) | 100.00 |
| Projection (Decimal Inch) | 3.9370 |
| Nose Diameter (mm) | 27.00 |
| Nose Diameter (Decimal Inch) | 1.0630 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 40.00 |
| Clamping Depth (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
