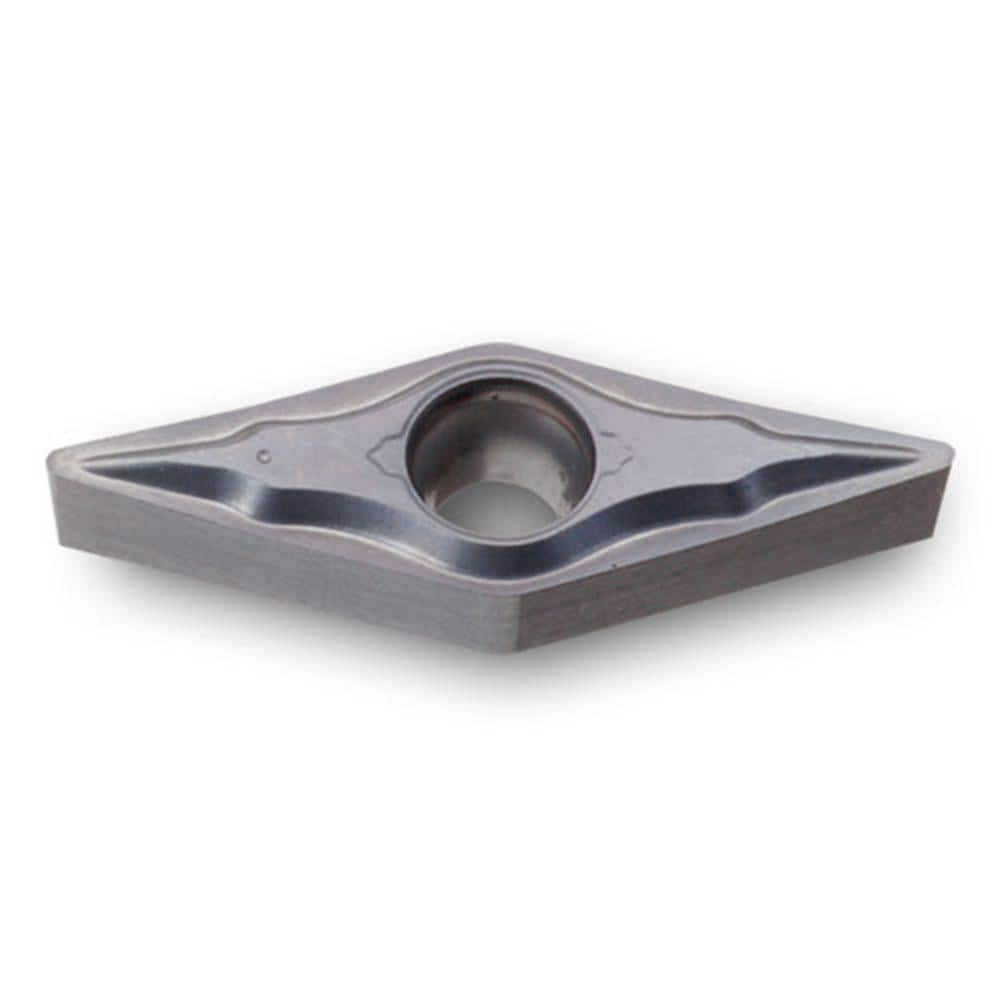

Turning Insert: VBGT331SA TT9020, Solid Carbide TiCN Finish, Neutral, 0.6540″ Long, 3/8″ Inscribed Circle, 0.0160″ Corner Radius, 35.0 ° N/A Diamond, Series VBGT
Item #: 39709795
Brand: Ingersoll Cutting Tools
Model #: 6138031
Product Specifications
| Insert Style | VBGT |
| Insert Shape Code | V |
| Insert Size Code | 331 |
| Insert Shape | Diamond |
| Clearance Code | B |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT9020 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 35.0 |
| Relief Angle | 5 |
| Series | VBGT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6540 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Ansi Code | VBGT331SATT9020 |
| Iso Code | VBGT160404SA TT9020 |
| Chip Breaker | SA |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Coating/Finish | TiCN |
