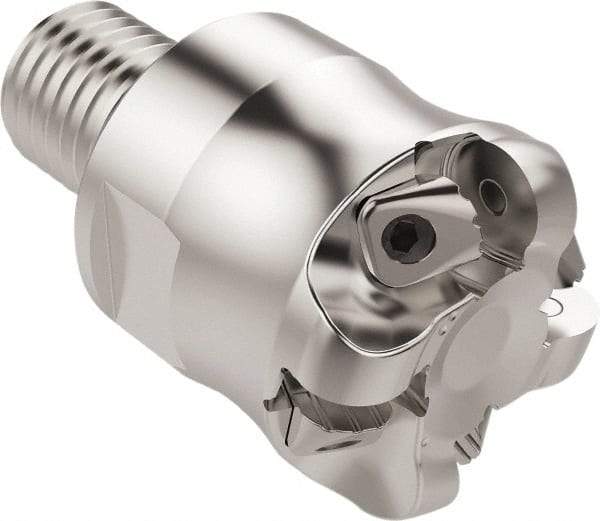

Seco - 27.42mm Cutting Diam, 6mm Max Depth of Cut, Combimaster Indexable Copy End Mill - 4 Inserts, RP.. 1204 Insert, R217.26 Toolholder, Steel, Through Coolant
Item #: 39684501
Brand: Seco
Model #: 03115687
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M20 |
| Number of Cutter Inserts | 4 |
| Insert Style | RP.. 1204 |
| Toolholder Style | R217.26 |
| Series | R217.26 |
| Overall Length (Decimal Inch) | 1.5750 |
| Insert Diameter (mm) | 12.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Weldon Flat | No |
| Number of Flutes | 4 |
| Head Length (mm) | 40.00 |
| Maximum RPM | 18600 |
| Modular Connection Size | M20 |
