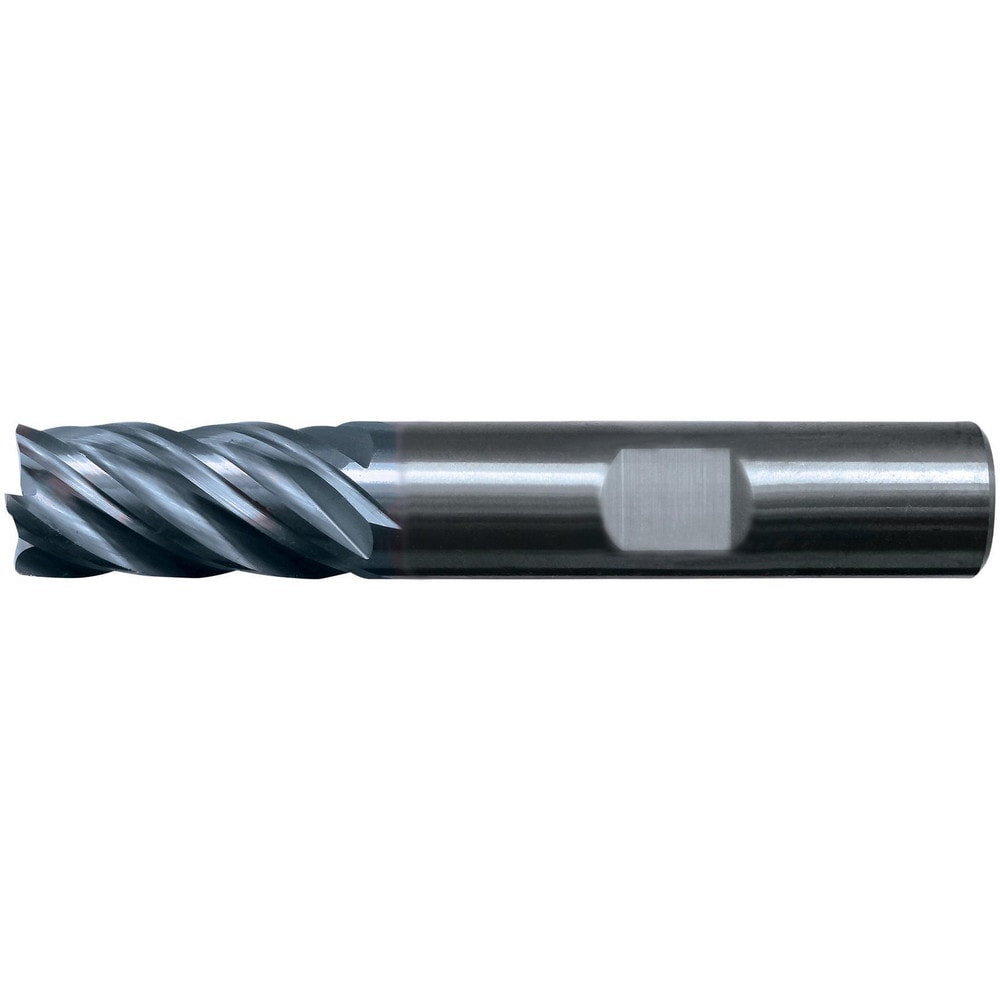

Square End Mill: 1/2" Dia, 1-1/4" LOC, 5 Flute, Solid Carbide
Item #: 96252077
Brand: Cleveland
Model #: C80565
Product Specifications
| Mill Diameter (mm) | 12.70 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.2500 |
| Length of Cut (Inch) | 1-1/4 |
| Length of Cut (mm) | 31.75 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 76.20 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Single Or Double End | Single |
| Coating/Finish Family | AP/MAX |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 38 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel; Hardened Materials |
| Primary Workpiece Material Code | P; S; H; M |
| Coating/Finish | AP/MAX |
| Variable Helix | No |
| Variable Index | Yes |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Sub Micrograin |
| Length Type | Long |
| Series | CEM-V2-5R-TA |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
