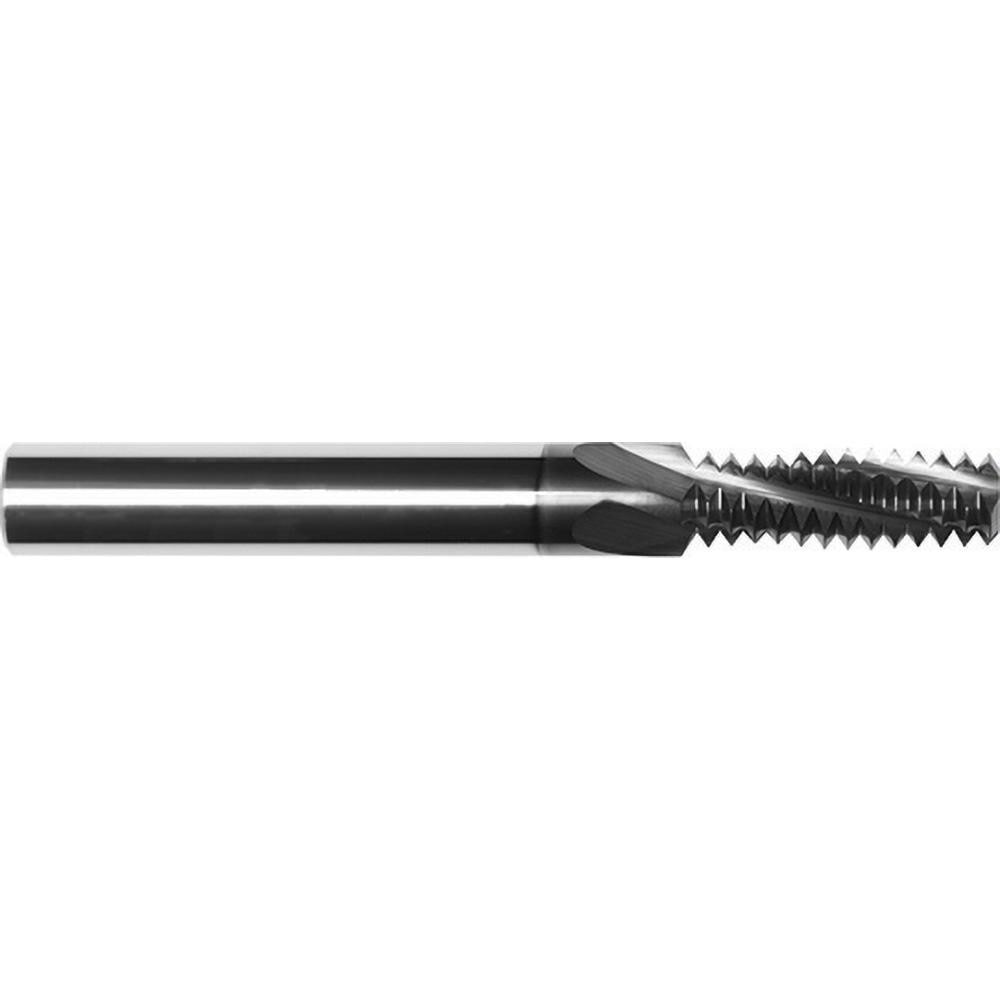

Helical Flute Thread Mill: 7/16-20, Internal & External, 4 Flute, 0.3125" Shank Dia, Solid Carbide

Helical Flute Thread Mill: 7/16-20, Internal & External, 4 Flute, 0.3125" Shank Dia, Solid Carbide


Item #: 70592373
Brand: Internal Tool
Model #: 89-1260

Product Specifications

Material Solid Carbide
Thread Size (Inch) 7/16-20
Thread Type Internal; External
Shank Diameter (Decimal Inch) 0.3125
Shank Type Straight-Cylindrical
Cutting Diameter (Decimal Inch) 0.3400
Length Of Cut (Decimal Inch - 4 Decimals) 0.8750
Minimum Nominal Diameter (Inch) 0.3400
Shank Length (Decimal Inch) 2.1250
Shank Length (Inch) 2-1/8
Overall Length (Decimal Inch) 3.0000
Thread Standard UNF
Flute Direction Right Hand
Material Grade Micrograin
Series 89
Number Of Flutes 4
Coating/Finish AlTiN
Coolant Through No
Thread Length (Decimal Inch) 0.8750
Teeth Per Inch 20
UNSPSC Code 23242117
Material Solid Carbide
Thread Size (Inch) 7/16-20
Thread Type Internal; External
Shank Diameter (Decimal Inch) 0.3125
Shank Type Straight-Cylindrical
Cutting Diameter (Decimal Inch) 0.3400
Length Of Cut (Decimal Inch - 4 Decimals) 0.8750
Minimum Nominal Diameter (Inch) 0.3400
Shank Length (Decimal Inch) 2.1250
Shank Length (Inch) 2-1/8
Overall Length (Decimal Inch) 3.0000
Thread Standard UNF
Flute Direction Right Hand
Material Grade Micrograin
Series 89
Number Of Flutes 4
Coating/Finish AlTiN
Coolant Through No
Thread Length (Decimal Inch) 0.8750
Teeth Per Inch 20
UNSPSC Code 23242117
MSC Part # 70592373
Mfr Part # 89-1260
Country of Origin Country of Origin is subject to change UNITED STATES
$220.59
