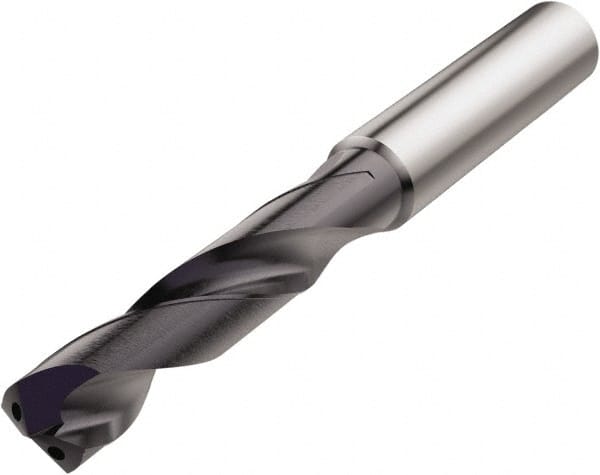

Screw Machine Length Drill Bit: 0.5276″ Dia, 140 °, Solid Carbide TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series SD203A
Item #: 39397294
Brand: Seco
Model #: 03046034
Product Specifications
| Drill Bit Size (mm) | 13.40 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Point Type | Conical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Drill Bit Size (Decimal Inch) | 0.5276 |
| Overall Length (mm) | 107.00 |
| Overall Length (Decimal Inch) | 4.2126 |
| Shank Diameter (mm) | 14.00 |
| Series | SD203A |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 60.00 |
| Drill Bit Size Range (Decimal Inch) | 0.5000 to 0.6000 |
| Drill Bit Size Range (mm) | 11.00 to 13.50 |
