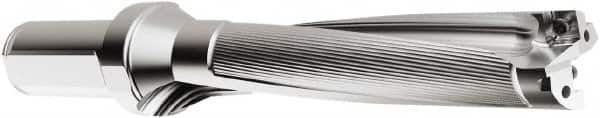

Seco - 220mm Max Drill Depth, 5xD, 44mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Straight Shank
Item #: 39331038
Brand: Seco
Model #: 03079607
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD525 |
| Drill Diameter (mm) | 44.00 |
| Drill Diameter (Decimal Inch) | 1.7323 |
| Maximum Drill Depth (mm) | 220.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 40.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 44.82 |
| Overall Length/Projection (mm) | 318.00 |
| Insert Compatibility (Outside or Peripheral) | SCGX 120408 |
| Insert Compatibility | SPGX1504.. |
| Flute Length (mm) | 225.00 |
| Body Length (mm) | 250.00 |
| Shank Length (mm) | 68.00 |
| Collar Diameter (mm) | 50.00 |
| Series | PerfoMAX |
