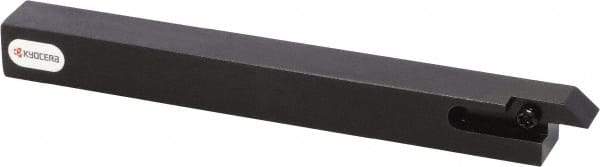

Kyocera - SABW, Right Hand Cut, 75° Lead Angle, 10mm Shank Height x 10mm Shank Width, Indexable Turning Toolholder - 120mm OAL, ABW..40.. Insert Compatibility, Series SABW
Item #: 39102256
Brand: Kyocera
Model #: 8835038
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SABW |
| Series | SABW |
| Lead Angle | 75 |
| Shank Width (mm) | 10.00 |
| Shank Width (Decimal Inch) | 0.3937 |
| Shank Height (mm) | 10.00 |
| Shank Height (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Insert Compatibility | ABW..40.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 5.50 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2165 |
| Insert Width (mm) | 3.97 |
| Insert Width (Decimal Inch) | 0.1563 |
