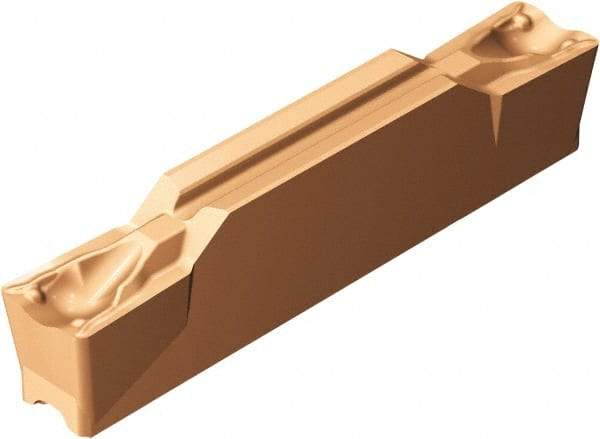

Sandvik Coromant - H2N123x2 TF Grade 1145, 4mm Cutting Width Carbide Grooving Insert - 23.3mm Max Depth of Cut, Neutral, 0.4mm Corner Radius, TiAlN/AlCr2O3 Finish
Item #: 39099916
Brand: Sandvik Coromant
Model #: 5736556
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123x2 |
| Insert Size | H2 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 23.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.9170 |
| Manufacturer's Grade | 1145 |
| Coating | TiAlN/AlCr2O3 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.35 |
| Cutting Height (Decimal Inch) | 0.1713 |
| Insert Seat Size | H |
| Chipbreaker | TF |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning; Grooving |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | PVD |
| Series | CoroCut 1-2 |
| Rake | Positive |
| ISO Number | N123H2-0400-0004-TF 1145 |
| Manufacturers Catalog Number | N123H2-0400-0004-TF 1145 |
| Overall Width (mm) | 4.35 |
| Overall Width (Decimal Inch) | 0.1713 |
| Insert Thickness (Decimal Inch) | 0.1713 |
