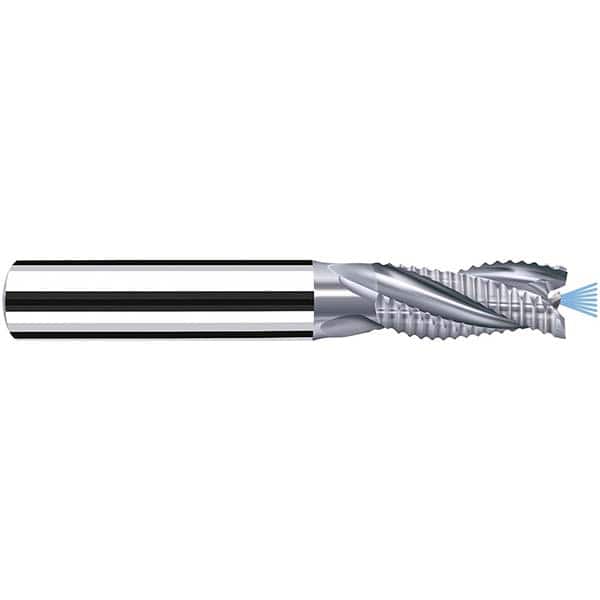

Fraisa - 20mm Diam, 40mm LOC, 3 Flute Solid Carbide Roughing Square End Mill
Item #: 18900266
Brand: Fraisa
Model #: 15600682
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 20.00 |
| Number of Flutes | 3 |
| Length of Cut (mm) | 40.0000 |
| Shank Diameter (mm) | 20.0000 |
| End Type | Square End |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Overall Length (mm) | 104.0000 |
| Centercutting | No |
| Helix Angle | 30.00 |
| Corner Radius (mm) | 0.20 |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Standard |
| Flute Type | Spiral |
| Series/List | AX-FPS |
| Chipbreaker | No |
