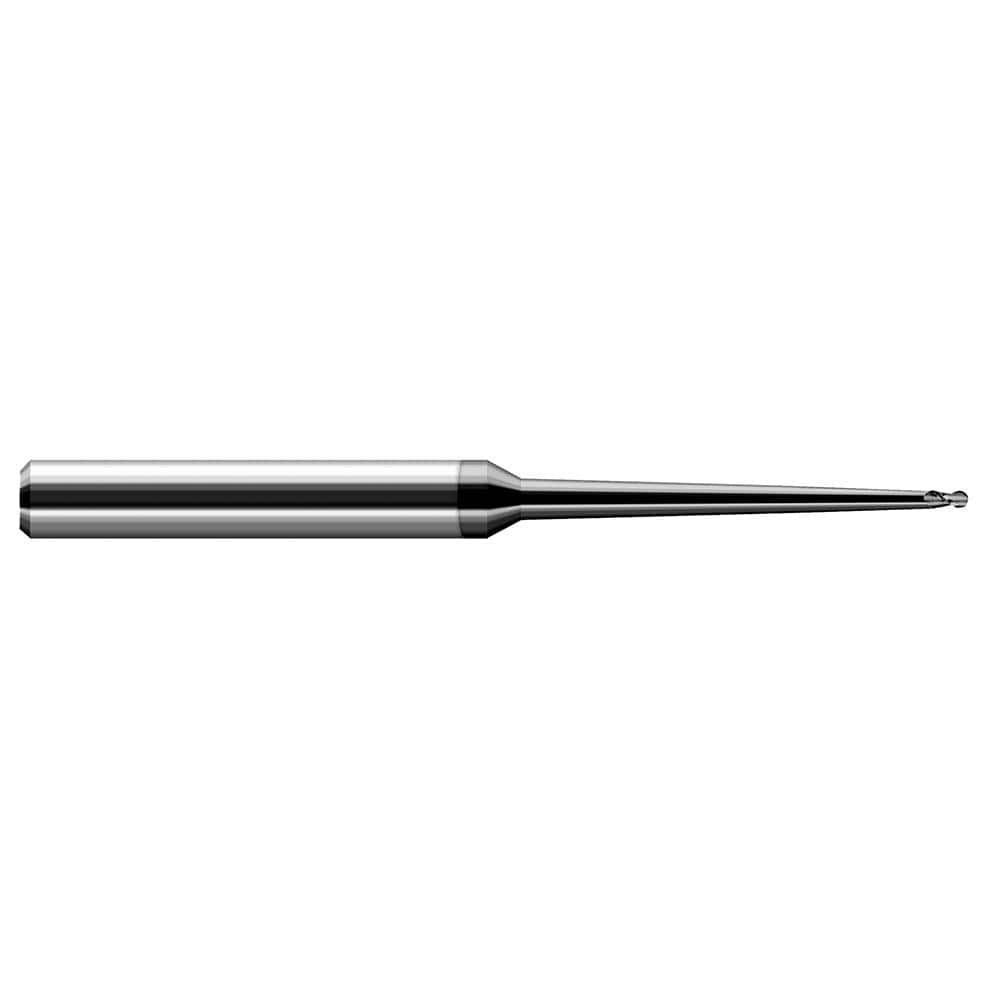

Ball End Mill: 0.078″ Dia, 0.117″ LOC, 2 Flute, Solid Carbide 4″ OAL, 1/4″ Shank Dia, 30 ° Helix, Amorphous Diamond Coated, Single End
Item #: 38983789
Brand: Harvey Tool
Model #: 17778-C4
Product Specifications
| Mill Diameter (Inch) | 5/64 |
| Mill Diameter (Decimal Inch) | 0.0780 |
| End Mill Material | Solid Carbide |
| Helix Angle | 30 |
| Length Of Cut Range (Decimal Inch) | 0.1000 to 0.2000 |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Reach Length (Inch) | 1 |
| Reach Length (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | Amorphous Diamond |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1170 |
