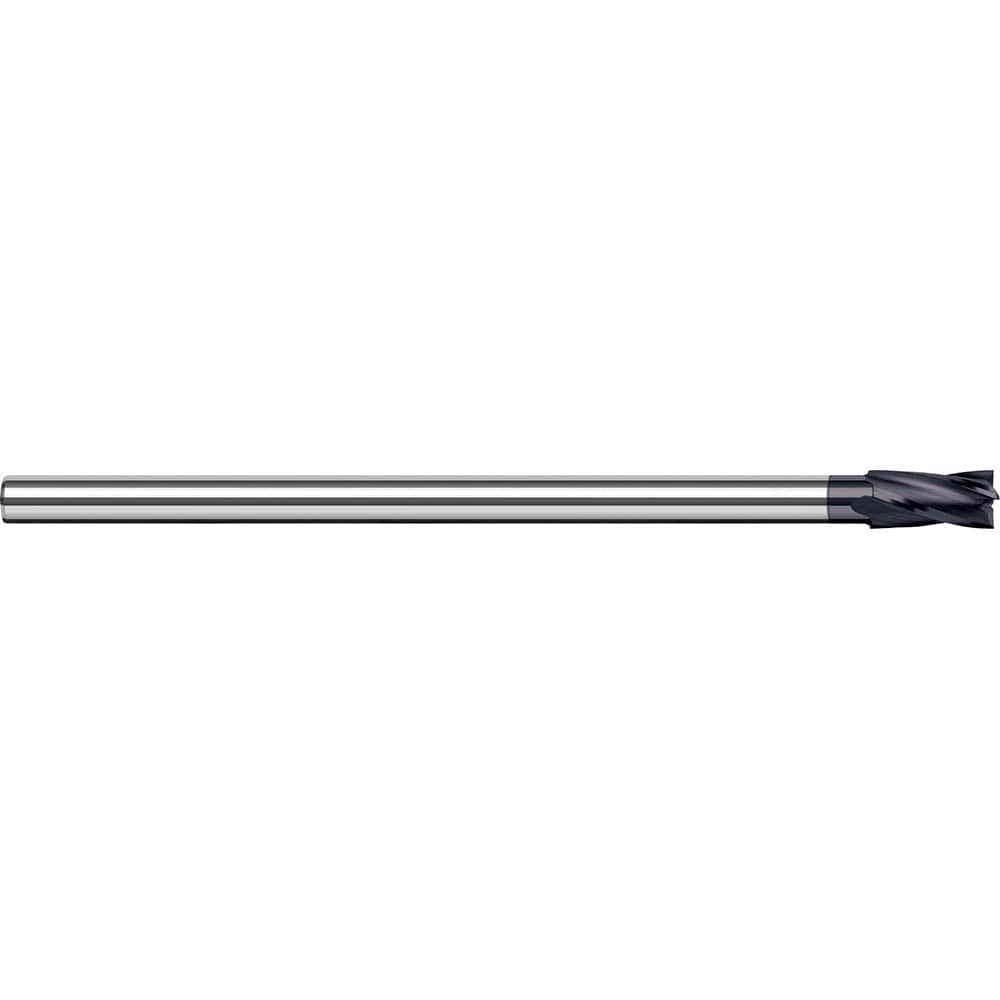

Harvey Tool - Square End Mills; Mill Diameter (Inch): 5/8 ; Mill Diameter (Decimal Inch): 0.6250 ; Length of Cut (Decimal Inch): 0.9380 ; Material: Solid Carbide ; Finish/Coating: AlTiN ; Shank Diameter (Inch): 1/2
Item #: 38928156
Brand: Harvey Tool
Model #: 943240-C3
Product Specifications
Square End Mills; Mill Diameter (Inch): 5/8 ; Mill Diameter (Decimal Inch): 0.6250 ; Length of Cut (Decimal Inch): 0.9380 ; Material: Solid Carbide ; Finish/Coating: AlTiN ; Shank Diameter (Inch): 1/2
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Length of Cut (Decimal Inch) | 0.9380 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (Inch) | 1/2 |
| Single or Double End | Single |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.00000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Series/List | End Mills - Square - Reduced Shank |
