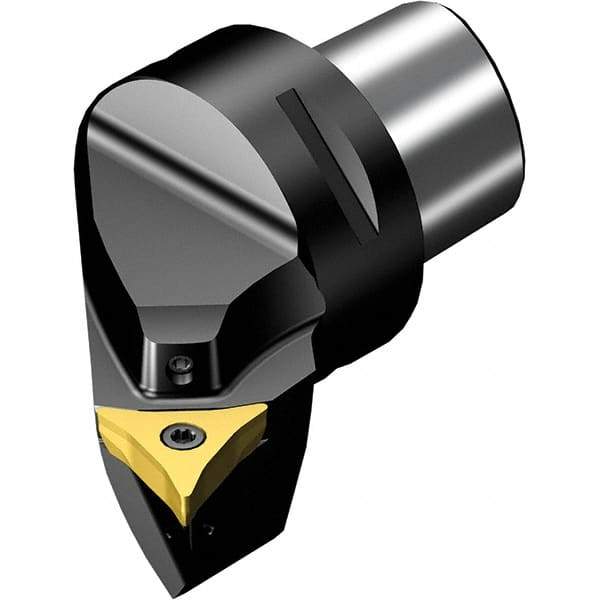

Sandvik Coromant - Right Hand Cut, Size C5, CP-A1108 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 40mm Ctr to Cutting Edge, Through Coolant, Series CoroTurn Prime
Item #: 38837621
Brand: Sandvik Coromant
Model #: 7393103
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | CoroTurn Prime |
| Cutting Direction | Right Hand |
| Insert Style | CP-A1108 |
| Center to Cutting Edge (mm) | 40.00 |
| Center to Cutting Edge (Decimal Inch) | 1.5748 |
| Through Coolant | Yes |
| Maximum Hole Depth (mm) | 60.00 |
| Maximum Hole Depth (Decimal Inch) | 2.3622 |
| Minimum Hole Diameter (mm) | 110.00 |
| Minimum Hole Diameter (Decimal Inch) | 4.3307 |
| Neck Diameter (mm) | 50.00 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | CP-A1108 |
