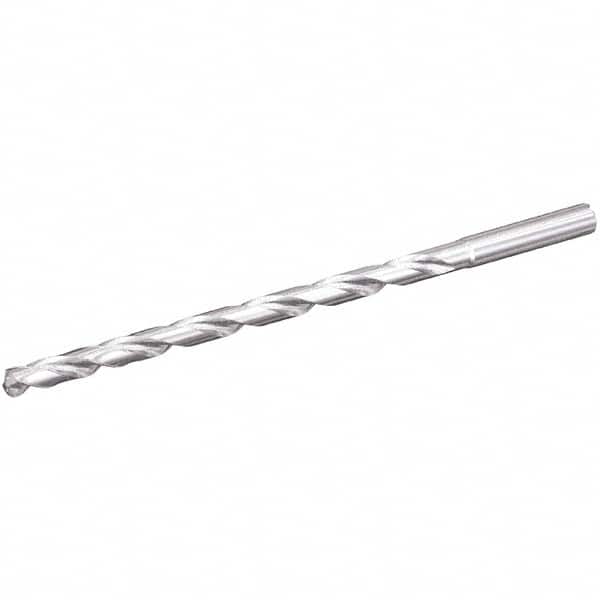

Extra Length Drill Bit: 0.1563″ Dia, 135 °, Solid Carbide Uncoated, 2.7559″ Flute Length, 4.1339″ OAL, Straight-Cylindrical Shank, Series B271SGL
Item #: 38590386
Brand: Kennametal
Model #: 6351172
Product Specifications
| Overall Length (mm) | 105.00 |
| Flute Length (mm) | 70.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | Uncoated |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Series | B271SGL |
| Cutting Direction | Right Hand |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.1563 |
| Drill Point Length (mm) | 0.67 |
| Drill Point Length (Decimal Inch) | 0.0264 |
| Overall Length (Decimal Inch) | 4.1339 |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Shank Diameter (mm) | 4.00 |
| Shank Length (Decimal Inch) | 1.2598 |
| Shank Length (mm) | 32.00 |
| Flute Length (Decimal Inch) | 2.7559 |
| Flute By Diameter Ratio | 15xD |
| Maximum Drilling Depth (Decimal Inch) | 2.3622 |
| Maximum Drilling Depth (mm) | 60.00 |
| Material Grade | KCMS20 |
