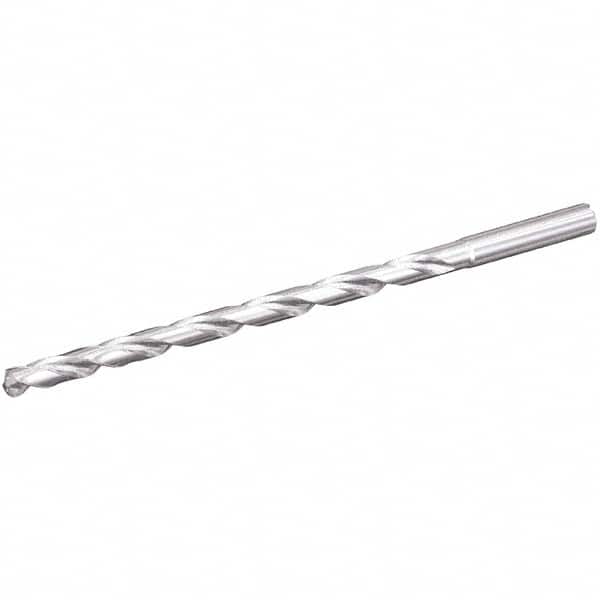

Extra Length Drill Bit: 0.1772″ Dia, 135 °, Solid Carbide Uncoated, 3.3465″ Flute Length, 4.8819″ OAL, Straight-Cylindrical Shank, Series B271SGL
Item #: 38590360
Brand: Kennametal
Model #: 6351176
Product Specifications
| Drill Bit Size (mm) | 4.50 |
| Overall Length (mm) | 124.00 |
| Flute Length (mm) | 85.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | Uncoated |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Series | B271SGL |
| Cutting Direction | Right Hand |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.1772 |
| Drill Point Length (mm) | 0.76 |
| Drill Point Length (Decimal Inch) | 0.0299 |
| Overall Length (Decimal Inch) | 4.8819 |
| Shank Diameter (Decimal Inch) | 0.1969 |
| Shank Diameter (mm) | 5.00 |
| Shank Length (Decimal Inch) | 1.3386 |
| Shank Length (mm) | 34.00 |
| Flute Length (Decimal Inch) | 3.3465 |
| Flute By Diameter Ratio | 15xD |
| Maximum Drilling Depth (Decimal Inch) | 2.9134 |
| Maximum Drilling Depth (mm) | 74.00 |
| Material Grade | KCMS20 |
