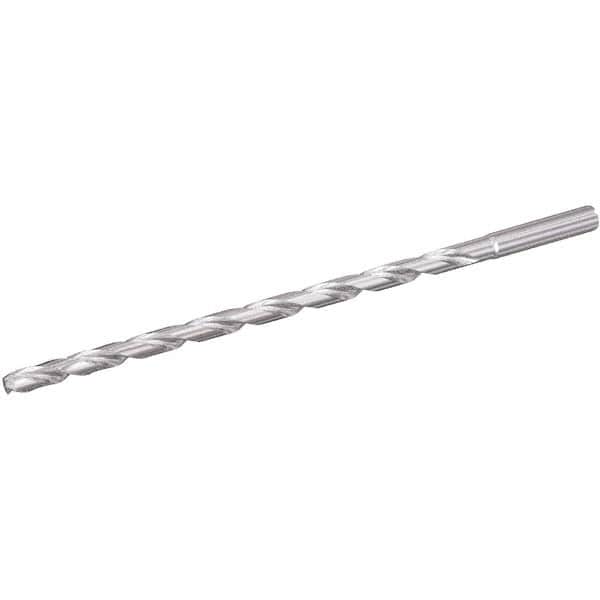

Extra Length Drill Bit: 0.1181″ Dia, 135 °, Solid Carbide Uncoated, 2.6378″ Flute Length, 3.9764″ OAL, Spiral Flute, Series B272SGL
Item #: 38589651
Brand: Kennametal
Model #: 6351281
Product Specifications
| Drill Bit Size (mm) | 3.00 |
| Overall Length (mm) | 101.00 |
| Flute Length (mm) | 67.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | Uncoated |
| Drill Point Angle | 135 |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | B272SGL |
| Cutting Direction | Right Hand |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.1181 |
| Drill Point Length (mm) | 0.51 |
| Drill Point Length (Decimal Inch) | 0.0201 |
| Overall Length (Decimal Inch) | 3.9764 |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.00 |
| Shank Length (Decimal Inch) | 1.1811 |
| Shank Length (mm) | 30.00 |
| Flute Length (Decimal Inch) | 2.6378 |
| Flute By Diameter Ratio | 20xD |
| Maximum Drilling Depth (Decimal Inch) | 2.3622 |
| Maximum Drilling Depth (mm) | 60.00 |
| Material Grade | KCMS20 |
