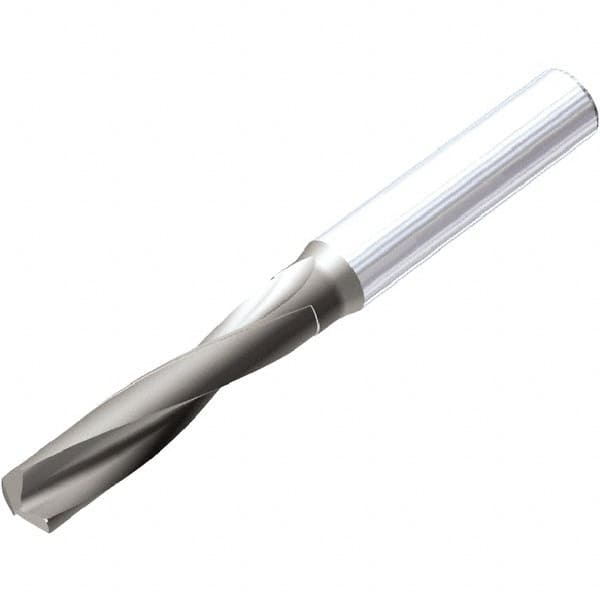

Screw Machine Length Drill Bit: 0.4016″ Dia, 142 °, Solid Carbide AlTiSiN Finish, Right Hand Cut, Helical & Spiral Flute, Straight-Cylindrical Shank, Series B941
Item #: 38585022
Brand: Kennametal
Model #: 6358994
Product Specifications
| Drill Bit Size (mm) | 10.20 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | AlTiSiN |
| Drill Point Angle | 142 |
| Spiral Type | Regular |
| Flute Type | Helical; Spiral |
| Point Type | SGL |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Drill Bit Size (Decimal Inch) | 0.4016 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0157 |
| Shank Diameter (mm) | 12.00 |
| Series | B941 |
| Maximum Drilling Depth (mm) | 40.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45.00 |
| Drill Point Length (mm) | 1.83 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 55.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Drill Bit Size Range (mm) | 9.50 to 11.00 |
| Material Grade | KCH10 |
