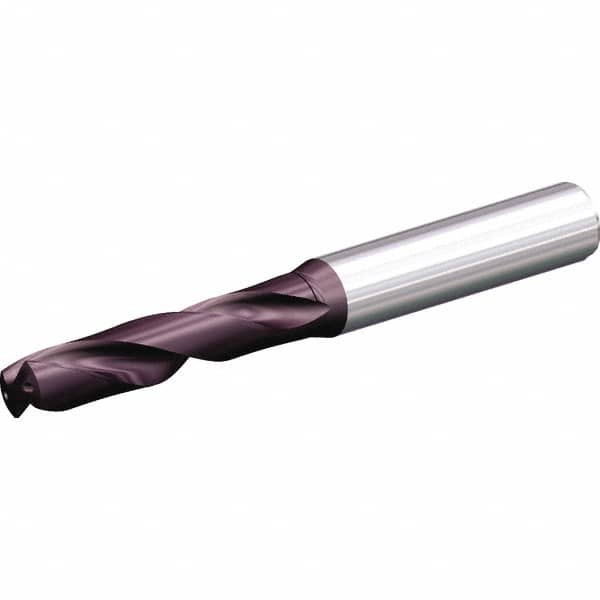

Kennametal - 13/64" 140° Spiral Flute Solid Carbide Screw Machine Drill Bit - Uncoated, Right Hand Cut, 28mm Flute Length, 66mm OAL, SGL Point, Straight Shank, Through Coolant
Item #: 38583787
Brand: Kennametal
Model #: 6358154
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on non-ferrous metals.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2031 |
| Drill Bit Size (Inch) | 13/64 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Uncoated |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 28.00 |
| Overall Length (mm) | 66.00 |
| Flute Length x Diameter Ratio | 3xD |
| Point Type | SGL Point |
| Shank Diameter (mm) | 6.00 |
| Flute Type | Helical |
| Maximum Drilling Depth (mm) | 20.00 |
| Number of Flutes | 2 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 36.00 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 0.76 |
| Drill Tip Finish/Coating | None |
| Material Grade | KCMS15 |
| Series/List | B210SGL |
