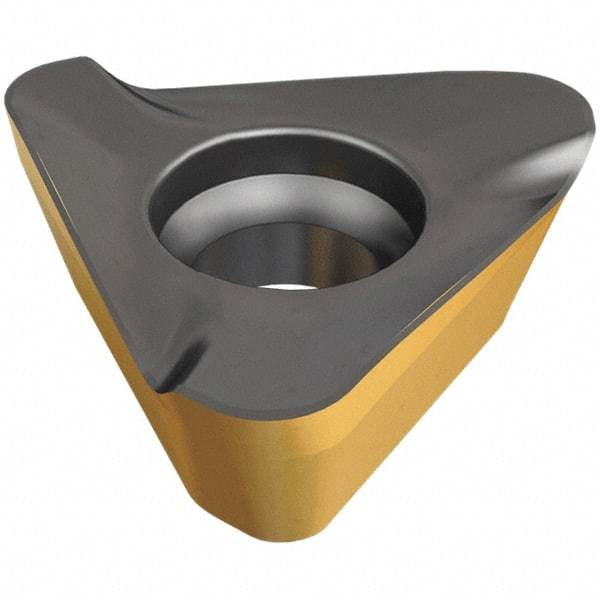

Iscar - HM390 TDKT150520 PDR Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 5.85mm Thick, 11.5mm Inscribed Circle, 2mm Corner Radius
Item #: 38531737
Brand: Iscar
Model #: 5668516
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM390 TDKT |
| Insert Size | 150520 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Length (mm) | 16.20 |
| Length (Decimal Inch) | 0.4530 |
| Inscribed Circle (mm) | 11.50 |
| Inscribed Circle (Decimal Inch) | 0.2300 |
| Thickness (mm) | 5.85 |
| Thickness (Decimal Inch) | 0.2300 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Corner Radius (mm) | 2.00 |
| Coating Process | PVD |
| Shape | Triangle |
| Chipbreaker | PDR |
| Maximum Depth of Cut (mm) | 12.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.4920 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | HM390 TDKT 150520-PDR |
| ISO Number | HM390 TDKT 150520-PDR |
| ANSI Number | HM390 TDKT 150520-PDR |
