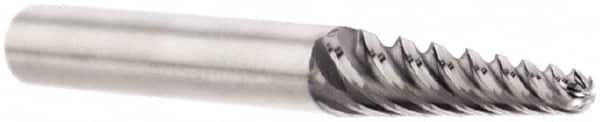

Kennametal - 4° Taper Angle per Side, 6mm Small End Diam, 39mm LOC, Solid Carbide 6 Flute Tapered Ball End Mill - AlTiN Finish, 100mm OAL, 0.4724" Shank Diam, 38° Helix
Item #: 38384699
Brand: Kennametal
Model #: 5970214
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Solid Carbide |
| End Type | Ball |
| Taper Angle Per Side | 4.00 |
| Small End Diameter (mm) | 6.00 |
| Small End Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 12 |
| Shank Diameter (Inch) | 0.4724 |
| Length of Cut (mm) | 39.00 |
| Length of Cut (Decimal Inch) | 1.5354 |
| Number of Flutes | 6 |
| Helix Angle | 38 |
| Finish/Coating | AlTiN |
| Overall Length (mm) | 100 |
| Nose Radius (Decimal Inch) | 0.1181 |
| Nose Radius (mm) | 3.00 |
| Flute Direction | Right Hand |
| Centercutting | Yes |
| Series/List | UJBE |
