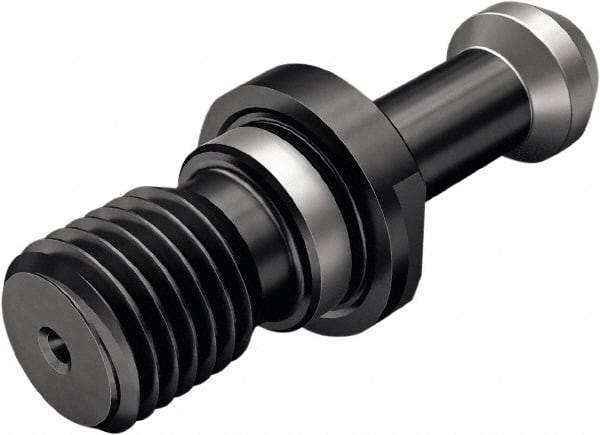

Seco - CAT50 Taper, 1-8 Thread, 30° Angle Radius, Standard Retention Knob - 3-1/4" OAL, 29/32" Knob Diam, 1.772" from Knob to Flange, Through Coolant
Item #: 38379772
Brand: Seco
Model #: 03119971
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | CAT50 |
| Thread Size | 1-8 |
| Angle Radius | 30.00 |
| Knob Diameter (Decimal Inch) | 0.9060 |
| Through Coolant | Yes |
| Neck Diameter (Decimal Inch) | 0.6690 |
| Overall Length (Decimal Inch) | 3.2480 |
| Knob to Flange Length (Decimal Inch) | 1.7720 |
