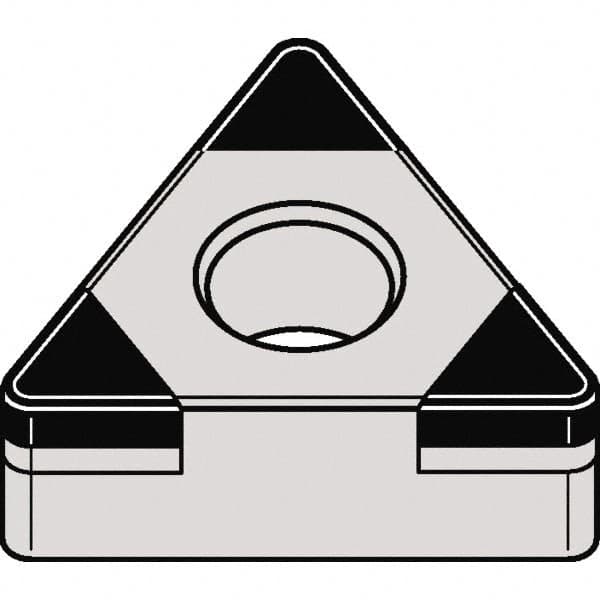

Kennametal - TNGA333 MT Grade KBH10 CBN Turning Insert - 60° Triangle, 3/8" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 38327532
Brand: Kennametal
Model #: 6295973
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | TNGA |
| Insert Size | 333 |
| Material | CBN |
| Length (Decimal Inch) | 0.6500 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | KBH10 |
| Chip Breaker | MT |
| Insert Length (Decimal Inch) | 0.6500 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | TNGA160412S01225MT |
| Relief Angle | 0 |
| Manufacturers Catalog Number | TNGA333S0525MT |
| Included Angle | 60 |
| Series | Kenloc |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
