Kennametal - VNGA332 MT Grade KBH10 CBN Turning Insert - 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius - Benchmark Tooling

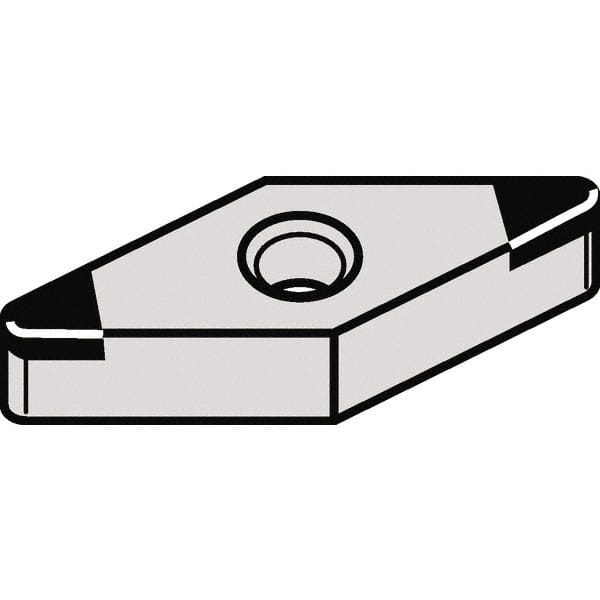

Kennametal - VNGA332 MT Grade KBH10 CBN Turning Insert - 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius


Item #: 38327490
Brand: Kennametal
Model #: 6295977
Exact Tooling IR#: 04

Features and Benefits

Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
Product Specifications
Insert Style VNGA
Insert Size 332
Material CBN
Length (Decimal Inch) 0.6540
Inscribed Circle (Decimal Inch) 0.3750
Inscribed Circle (Inch) 3/8
Thickness (Inch) 3/16
Thickness (Decimal Inch) 0.1875
Corner Radius (Inch) 1/32
Corner Radius (Decimal Inch) 0.0312
Manufacturer's Grade KBH10
Chip Breaker MT
Insert Length (Decimal Inch) 0.6540
Hole Diameter (Decimal Inch) 0.1500
ISO Number VNGA160408S01015MT
Relief Angle 0
Manufacturers Catalog Number VNGA332S0415MT
Included Angle 35
Series Kenloc
Insert Holding Method Pin & Clamp
Shape Diamond
$102.36
