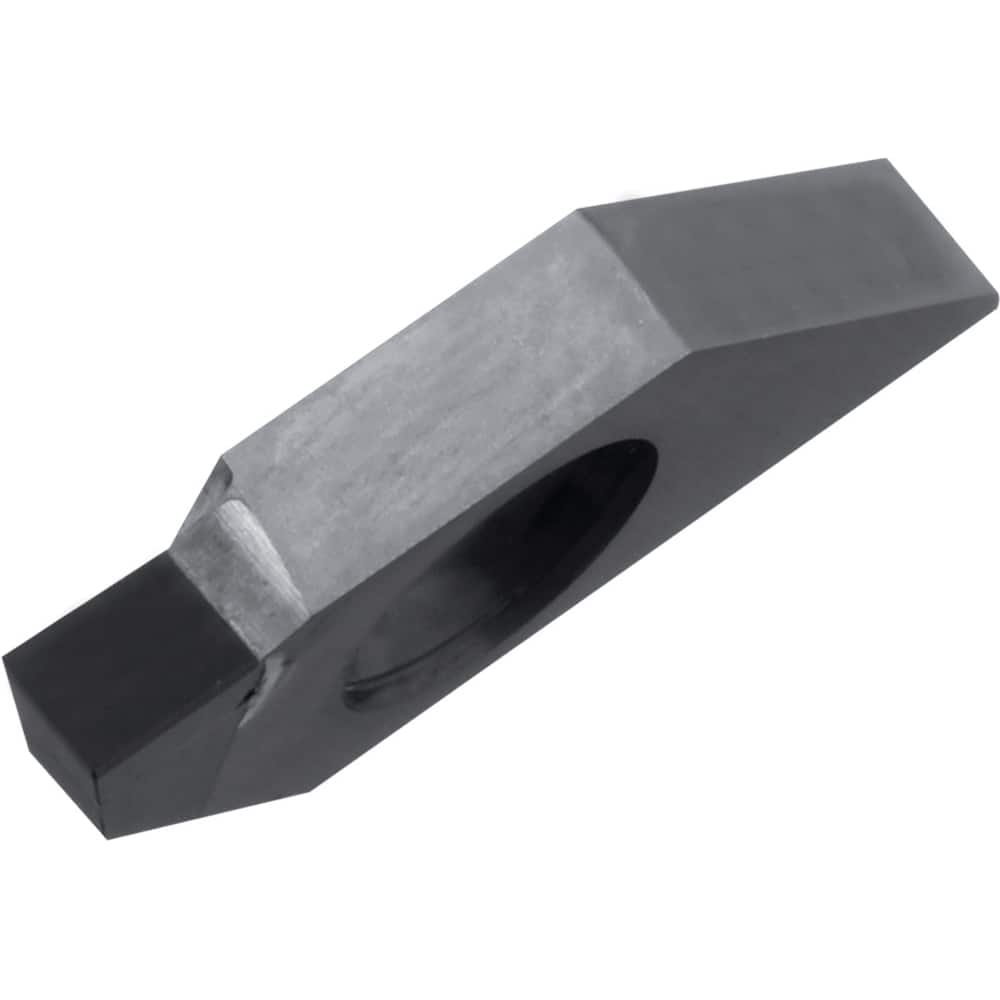

Kyocera - TKF12R150-NB KPD001 PCD Grooving Insert
Item #: 38324216
Brand: Kyocera
Model #: 8829651
Product Specifications
| Insert Style | TKF |
| Insert Size | 12 |
| Material | PCD |
| Cutting Width (mm) | 1.500 |
| Maximum Depth of Cut (mm) | 3.50 |
| Manufacturer's Grade | KPD001 |
| Coating | Uncoated |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 8.30 |
| Number of Cutting Edges | 1 |
| Lead Angle | 0.000 |
| Chipbreaker | NB |
| Multi-Use Application | External Grooving; Traversing |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.10 |
| Coating Process | Uncoated |
| Series | KTKF |
| Rake | Positive |
| ISO Number | TKF12R150-NB |
| Manufacturers Catalog Number | TKF12R150NBKPD001 |
| Insert Thickness (mm) | 8.70 |
| Series Number | KTKF |
| Minimum Insert Width (mm) | 3.00 |
| Insert Holding Method | Screw |
| Hole Diameter (mm) | 5.0000 |
| Hole Diameter (Decimal Inch) | 0.1969 |
