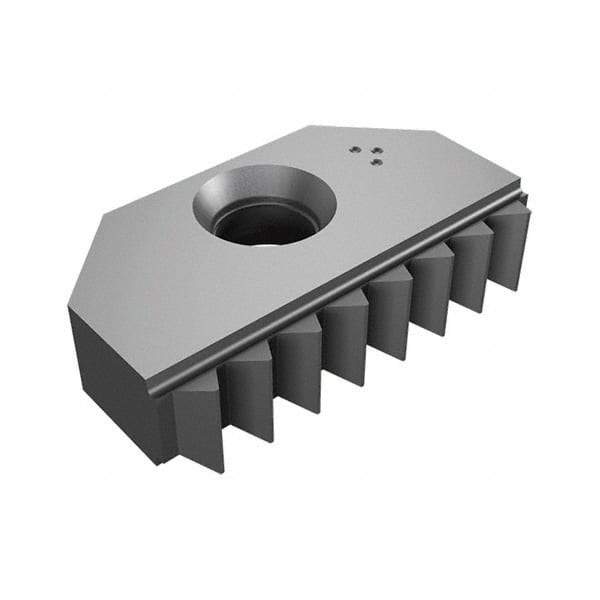

Iscar - 11 TPI, Internal/External Thread, BSPT Standard, MT LNHT Grade IC908 Thread Mill Insert - Carbide, TiAlN Coating
Item #: 38276580
Brand: Iscar
Model #: 5669484
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | MT LNHT |
| Thread Type | Internal/External |
| Thread Standard | BSPT |
| Threads Per Inch | 11 |
| Length (mm) | 21.00 |
| Length (Decimal Inch) | 0.8270 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Material | Carbide |
| Coating | TiAlN |
| Coating Process | PVD |
| Thickness (mm) | 4.80 |
| Thickness (Decimal Inch) | 0.1890 |
| Width (Decimal Inch) | 0.4960 |
| Width (mm) | 12.60 |
