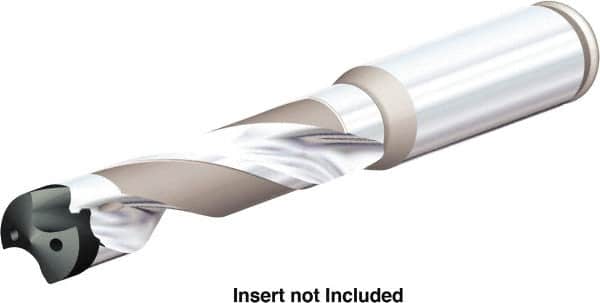

Kennametal - Series KenTIP FS, Head Connection H, 5xD, 10mm Shank Diam, Drill Body - 41mm Drill Body Length to Flange, KTFS Toolholder, 9mm Nose Diam, 103mm OAL, 103mm Drill Body Length, 58.7mm Flute Length, Straight Shank, Through Coolant
Item #: 38275574
Brand: Kennametal
Model #: 6389387
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP FS |
| Head Connection Size | H |
| Drill Depth by Diameter Ratio | 5xD |
| Shank Diameter (mm) | 10.00 |
| Drill Body Length to Flange (mm) | 41.00 |
| Toolholder Style | KTFS |
| Nose Diameter (mm) | 9.00 |
| Overall Length (mm) | 103.00 |
| Gage Length (mm) | 103.00 |
| Flute Length (mm) | 58.70 |
| Shank Type | Straight Shank |
| Shank Length (mm) | 41.00 |
| Through Coolant | Through Coolant |
