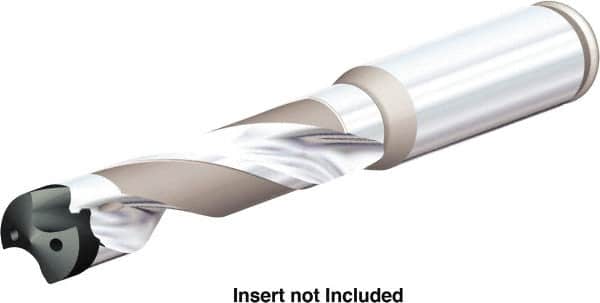

Kennametal - Series KenTIP FS, Head Connection I, 5xD, 10mm Shank Diam, Drill Body - 41mm Drill Body Length to Flange, KTFS Toolholder, 9.5mm Nose Diam, 105mm OAL, 105mm Drill Body Length, 61.2mm Flute Length, Straight Shank, Through Coolant
Item #: 38275566
Brand: Kennametal
Model #: 6389388
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP FS |
| Head Connection Size | I |
| Drill Depth by Diameter Ratio | 5xD |
| Shank Diameter (mm) | 10.00 |
| Drill Body Length to Flange (mm) | 41.00 |
| Toolholder Style | KTFS |
| Nose Diameter (mm) | 9.50 |
| Overall Length (mm) | 105.00 |
| Gage Length (mm) | 105.00 |
| Flute Length (mm) | 61.20 |
| Shank Type | Straight Shank |
| Shank Length (mm) | 41.00 |
| Through Coolant | Through Coolant |
