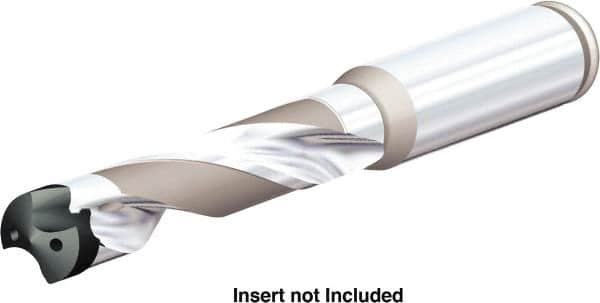

Kennametal - Series KenTIP FS, Head Connection X, 1xD, 20mm Shank Diam, Drill Body - 51mm Drill Body Length to Flange, KTFS Toolholder, 19mm Nose Diam, 103mm OAL, 103mm Drill Body Length, 49.5mm Flute Length, Straight Shank
Item #: 38274221
Brand: Kennametal
Model #: 6389567
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP FS |
| Head Connection Size | X |
| Drill Depth by Diameter Ratio | 1xD |
| Shank Diameter (mm) | 20.00 |
| Drill Body Length to Flange (mm) | 51.00 |
| Toolholder Style | KTFS |
| Nose Diameter (mm) | 19.00 |
| Overall Length (mm) | 103.00 |
| Gage Length (mm) | 103.00 |
| Flute Length (mm) | 49.50 |
| Shank Type | Straight Shank |
| Shank Length (mm) | 51.00 |
