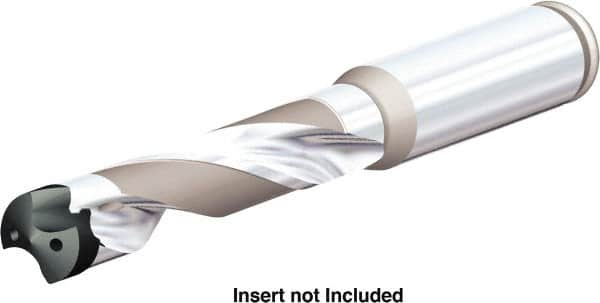

Kennametal - Series KenTIP FS, Head Connection D, 5xD, 5/16" Shank Diam, Drill Body - 38.61mm Drill Body Length to Flange, KTFS Toolholder, 7mm Nose Diam, 88mm OAL, 88mm Drill Body Length, 46.6mm Flute Length, Straight Shank
Item #: 38273801
Brand: Kennametal
Model #: 6389410
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KenTIP FS |
| Head Connection Size | D |
| Drill Depth by Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 5/16 |
| Drill Body Length to Flange (mm) | 38.61 |
| Toolholder Style | KTFS |
| Nose Diameter (mm) | 7.00 |
| Overall Length (mm) | 88.00 |
| Gage Length (mm) | 88.00 |
| Flute Length (mm) | 46.60 |
| Shank Type | Straight Shank |
| Shank Length (mm) | 38.61 |
