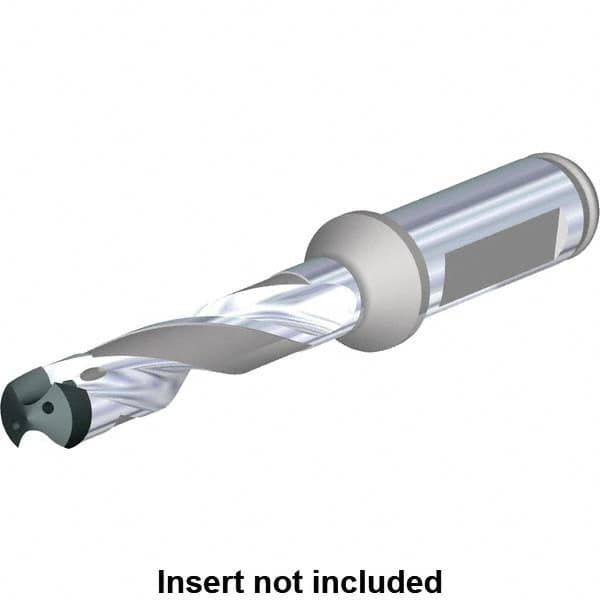

Kennametal - Series KenTIP FS, Head Connection F, 3xD, 12mm Shank Diam, Drill Body - 45mm Drill Body Length to Flange, KTFS Toolholder, 8mm Nose Diam, 92mm OAL, 92mm Drill Body Length, 34.1mm Flute Length, Flatted Straight Shank
Item #: 38273645
Brand: Kennametal
Model #: 6389436
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KenTIP FS |
| Head Connection Size | F |
| Drill Depth by Diameter Ratio | 3xD |
| Shank Diameter (mm) | 12.00 |
| Drill Body Length to Flange (mm) | 45.00 |
| Toolholder Style | KTFS |
| Nose Diameter (mm) | 8.00 |
| Overall Length (mm) | 92.00 |
| Gage Length (mm) | 92.00 |
| Flute Length (mm) | 34.10 |
| Shank Type | Flatted Straight Shank |
| Shank Length (mm) | 45.00 |
