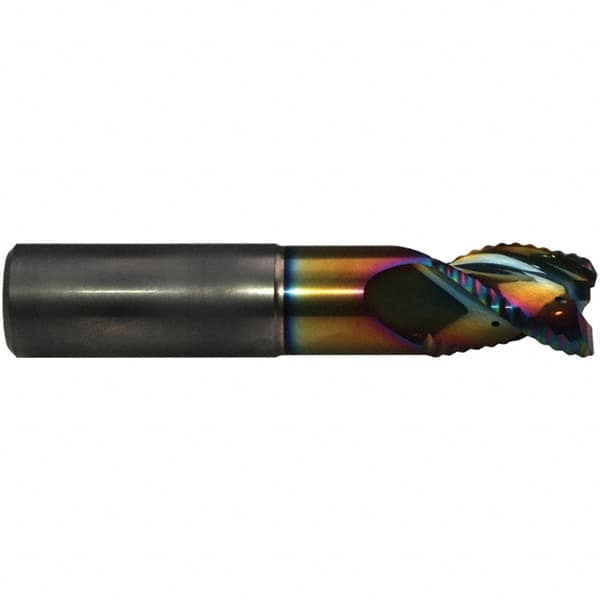

Emuge - 12mm Diam, Coarse Pitch, 15mm LOC, 3 Flute Solid Carbide 45° Corner Chamfer Roughing End Mill - CrN Finish, 83mm OAL, 12mm Shank Diam, Single End, Extended Reach, 40° Helix
Item #: 38260147
Brand: Emuge
Model #: 2888RZ.012
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Chromium Nitride (CrN) is a coating similar to TiN, but has higher heat resistance. It is commonly used on aluminum, brass, copper, nickel alloys and other non-ferrous metals.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 12.00 |
| Number of Flutes | 3 |
| Pitch | Coarse |
| Length of Cut (mm) | 15.00 |
| Shank Diameter (mm) | 12.00 |
| End Type | Corner Chamfer |
| Material | Solid Carbide |
| Finish/Coating | CrN |
| Overall Length (mm) | 83.00 |
| Centercutting | NonCenter Cutting |
| Helix Angle | 40.00 |
| Extended Reach | Yes |
| Coolant Induced | Yes |
| Chamfer Angle | 45 |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Long |
| Flute Type | Spiral |
| Reach Length (mm) | 35 |
| Series/List | 2888RZ |
| Additional Information | Combination Axial & Radial Coolant Hole Channels |
