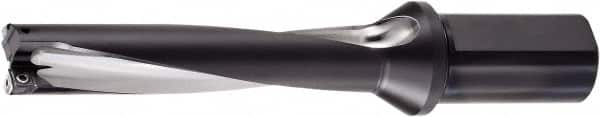

OSG - 270mm Max Drill Depth, 5xD, 54mm Diam, Indexable Insert Drill - 40mm Shank Diam, Straight Shank
Item #: 38225462
Brand: OSG
Model #: 7802770
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | P5D |
| Drill Diameter (mm) | 54.00 |
| Drill Diameter (Decimal Inch) | 2.1260 |
| Maximum Drill Depth (mm) | 270.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 40.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | High Speed Steel |
| Overall Length/Projection (mm) | 370.00 |
| Shank Length (mm) | 70.00 |
| Series | 78027 |
