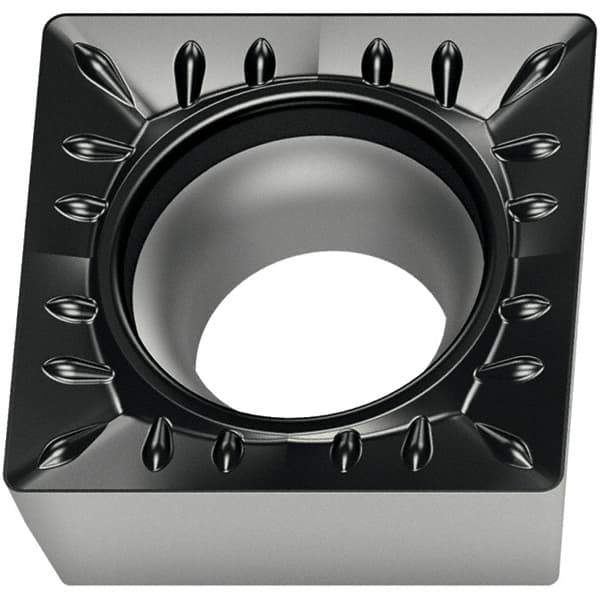

Walter - SCMT32.51 RM4 Grade WSM30S Carbide Turning Insert - 90° Square, 3/8" Inscr Circle, 5/32" Thick, 0.4mm Corner Radius
Item #: 38188033
Brand: Walter
Model #: 6917308
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 32.51 |
| Material | Carbide |
| Length (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (mm) | 3.97 |
| Corner Radius (mm) | 0.40 |
| Manufacturer's Grade | WSM30S |
| Chip Breaker | RM4 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| FullRadius | No |
| MultiUseTool | Yes |
| Shape | Square |
