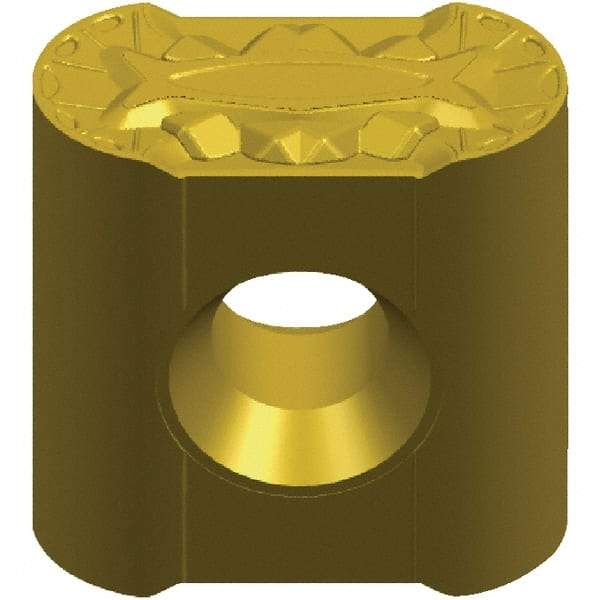

Kennametal - LNUX191950 RRP Grade KCP25B Carbide Turning Insert - TiOCN Finish, 3/4" Inscr Circle, 3/4" Thick, 5mm Corner Radius
Item #: 38183570
Brand: Kennametal
Model #: 6034411
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNUX |
| Insert Size | 191950 |
| Material | Carbide |
| Length (Decimal Inch) | 0.7500 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 3/4 |
| Thickness (Decimal Inch) | 0.7500 |
| Corner Radius (mm) | 5.00 |
| Manufacturer's Grade | KCP25B |
| Coating | TiOCN |
| Chip Breaker | RRP |
| Insert Length (Decimal Inch) | 0.7500 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| ISO Number | LNUX191950RRP |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | LNUX191950RRP |
| Primary Workpiece Material | P |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin |
| Multi Use Application | Turning |
