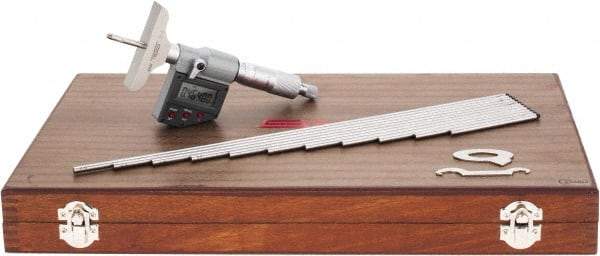

SPI - 0 to 300mm Range, 2-1/2" Base Length, 12 Rods, Ratchet Stop Thimble, Electronic Depth Micrometer - IP65, 0.00005" Resolution, Accurate to 0.007mm, 0.176" Rod Diam, LR44 Battery, Data Output
Item #: 38172847
Brand: SPI
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Measurement (mm) | 0.00 |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Maximum Measurement (Inch) | 12 |
| Maximum Measurement (Decimal Inch) | 12.0000 |
| Maximum Measurement (mm) | 300.00 |
| Base Length (Inch) | 2-1/2 |
| Number of Rods | 12 |
| Thimble Type | Ratchet Stop |
| Resolution (mm) | 0.0010 |
| Resolution (Decimal Inch) | 0.000050 |
| Accuracy (mm) | 0.0070 |
| Accuracy (Decimal Inch) | 0.000280 |
| Rod Diameter (mm) | 4.50 |
| Rod Diameter (Decimal Inch) | 0.1760 |
| Data Output | Yes |
| Battery Type | LR44 |
| Water Resistance Rating | IP65 |
| Measuring Face Material | Hardened Tool Steel |
| Finish/Coating | Bright |
| Traceability Certification Included | NIST |
