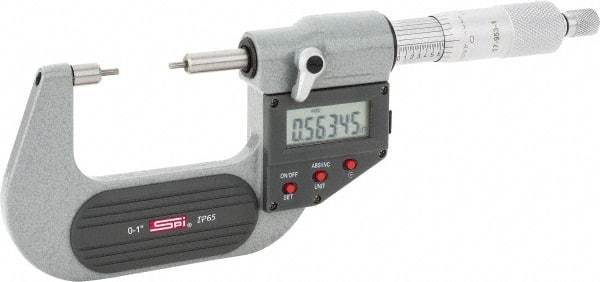

SPI - 0 to 1 Inch, 1.26 Inch Throat Depth, Electronic Spline Micrometer - 0.0001 Inch Accuracy, 0.00005 Inch Graduation, 0.25 Inch Spindle Diameter, 2mm Head Diameter, Ratchet Stop Thimble, Data Output
Item #: 38172623
Brand: SPI
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Operation Type | Electronic |
| Minimum Measurement (mm) | 0.00 |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Maximum Measurement (Decimal Inch) | 1.0000 |
| Maximum Measurement (mm) | 25.00 |
| Digital Counter | No |
| Traceability Certification Included | NIST |
| Throat Depth (mm) | 32.00 |
| Throat Depth (Decimal Inch) | 1.2600 |
| Graduation (mm) | 0.0010 |
| Graduation (Decimal Inch) | 0.000050 |
| Accuracy (mm) | 0.0020 |
| Accuracy (Decimal Inch) | 0.000100 |
| Thimble Type | Ratchet Stop |
| Spindle Type | Flat |
| Spindle Diameter (mm) | 6.50 |
| Spindle Diameter (Decimal Inch) | 0.2500 |
| Rotating Spindle | Yes |
| Head Diameter (mm) | 2.00 |
| Data Output | Yes |
| Finish/Coating | Painted |
