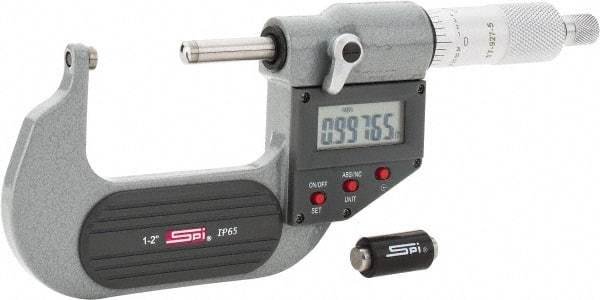

SPI - Electronic, 1 to 2" Measurement, Painted Finish Carbide Face Ball Anvil Micrometer - 0.00005" Graduation, Ratchet Stop Thimble
Item #: 38169785
Brand: SPI
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Operation Type | Electronic |
| Minimum Measurement (mm) | 25.00 |
| Minimum Measurement (Decimal Inch) | 1.0000 |
| Maximum Measurement (Inch) | 2 |
| Maximum Measurement (Decimal Inch) | 2.0000 |
| Maximum Measurement (mm) | 50.00 |
| Digital Counter | No |
| Traceability Certification Included | NIST |
| Graduation (mm) | 0.0010 |
| Graduation (Decimal Inch) | 0.000050 |
| Accuracy (mm) | 0.0020 |
| Accuracy (Decimal Inch) | 0.000200 |
| Thimble Type | Ratchet Stop |
| Spindle Type | Spherical |
| Spindle Diameter (mm) | 6.50 |
| Spindle Diameter (Decimal Inch) | 0.2500 |
| Anvil Type | Ball |
| Rotating Spindle | Yes |
| Finish/Coating | Painted |
| Measuring Face Material | Carbide |
