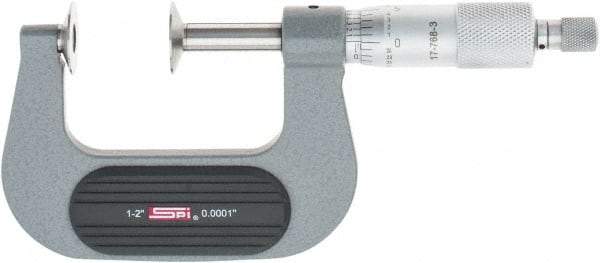

SPI - 1 to 2", Ratchet Stop Thimble, Mechanical Disc Micrometer - 0.0002" Accuracy, 0.79" Disc, 0.0001" Resolution, 0.31" Spindle Diam, Steel Face, NIST Traceability Certification Included
Item #: 38169702
Brand: SPI
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Operation Type | Mechanical |
| Minimum Measurement (Decimal Inch) | 1.0000 |
| Maximum Measurement (Decimal Inch) | 2.0000 |
| Thimble Type | Ratchet Stop |
| Digital Counter | No |
| Traceability Certification Included | NIST |
| Throat Depth (Decimal Inch) | 1.7600 |
| Resolution (Decimal Inch) | 0.000100 |
| Accuracy (Decimal Inch) | 0.00020 |
| Water Resistance Rating | None |
| Disc Diameter (Decimal Inch) | 0.7900 |
| Disc Edge Thickness (Decimal Inch) | 0.0280 |
| Rotating Spindle | Yes |
| Spindle Diameter (mm) | 8.00 |
| Spindle Diameter (Decimal Inch) | 0.3100 |
| Anvil Type | Disc |
| Finish/Coating | Painted |
| Measuring Face Material | Steel |
