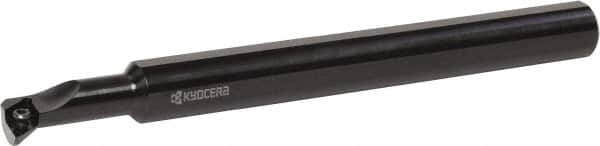

Kyocera - 0.984" Min Bore Diam, 9" OAL, 1" Shank Diam, S...SDZC Indexable Boring Bar - 2.09" Max Bore Depth, DCGT 325.., DCGW 325.., DCMT 325.., DCMW 325.. Insert, Screw Holding Method
Item #: 38163226
Brand: Kyocera
Model #: 8604123
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S...SDZC |
| Minimum Bore Diameter (Decimal Inch) | 0.9840 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 2.0900 |
| Overall Length (Decimal Inch) | 9.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | DCGT 325..; DCGW 325..; DCMT 325..; DCMW 325.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 3 |
| Center to Cutting Edge (Decimal Inch) | 0.6930 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | -5 |
| Complete Insert Compatibility | DCGT 325013MFR/L-U; DCGT 325013MR/L-F; DCGT 32501FR/L-U; DCGT 32501M; DCGT 32501MF; DCGT 32501R/L-F; DCGT 32502CK; DCGT 32502ER/L-U; DCGT 32502FR/L-U; DCGT 32502M; DCGT 32502M-CF; DCGT 32502M-CK; DCGT 32502MER/L-U; DCGT 32502MF; DCGT 32502MF-GF; DCGT 3250 |
| Toolholder Material | Steel |
