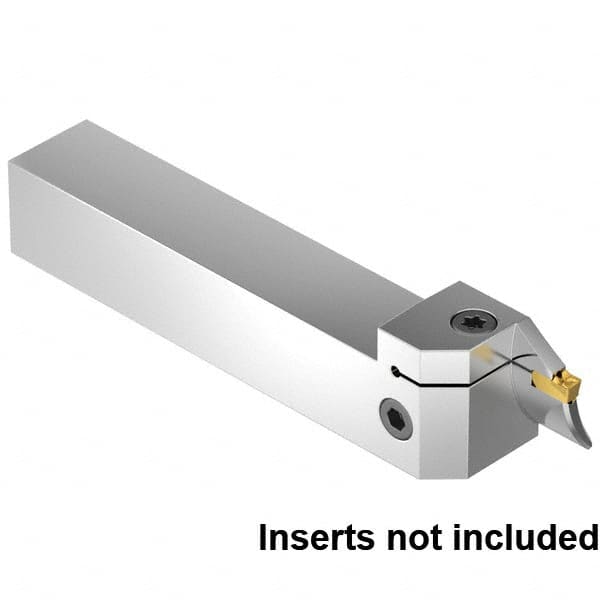

Kennametal - External Thread, 16mm Max Cut of Depth, 4mm Min Groove Width, 5" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 3/4" Shank Height x 3/4" Shank Width, EG0400M04P04 Insert Style, EVSB Toolholder Style, Series Beyond Evolution
Item #: 37966751
Brand: Kennametal
Model #: 6117357
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 16.00 |
| Minimum Groove Width (mm) | 4.00 |
| Maximum Groove Width (mm) | 4.00 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 4.5000 |
| Series | Beyond Evolution |
| Toolholder Style | EVSB |
| Insert Compatibility | EG0400M04P04 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | Through Coolant |
| Head Height (mm) | 27.55 |
| Head Length (mm) | 37.00 |
| Shank Length (mm) | 77.30 |
