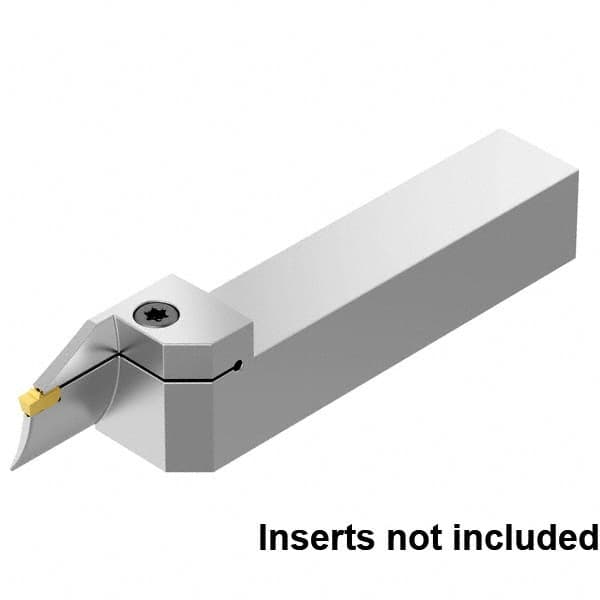

Kennametal - External Thread, 12mm Max Cut of Depth, 3mm Min Groove Width, 5" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 3/4" Shank Height x 3/4" Shank Width, EG0300M03P02 Insert Style, EVSB Toolholder Style, Series Beyond Evolution
Item #: 37966314
Brand: Kennametal
Model #: 6117354
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 12.00 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 3.00 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 4.5000 |
| Series | Beyond Evolution |
| Toolholder Style | EVSB |
| Insert Compatibility | EG0300M03P02 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | Through Coolant |
| Head Height (mm) | 27.55 |
| Head Length (mm) | 33.00 |
| Shank Length (mm) | 81.30 |
