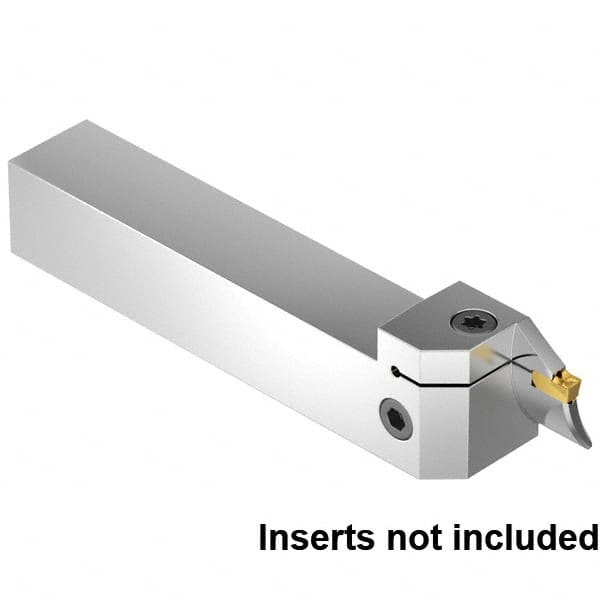

Kennametal - External Thread, 16mm Max Cut of Depth, 5mm Min Groove Width, 6" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, EG0500M05P04 Insert Style, EVSB Toolholder Style, Series Beyond Evolution
Item #: 37966165
Brand: Kennametal
Model #: 6117170
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 16.00 |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (mm) | 5.00 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Series | Beyond Evolution |
| Toolholder Style | EVSB |
| Insert Compatibility | EG0500M05P04 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | Through Coolant |
| Head Height (mm) | 33.90 |
| Head Length (mm) | 37.00 |
| Shank Length (mm) | 118.50 |
