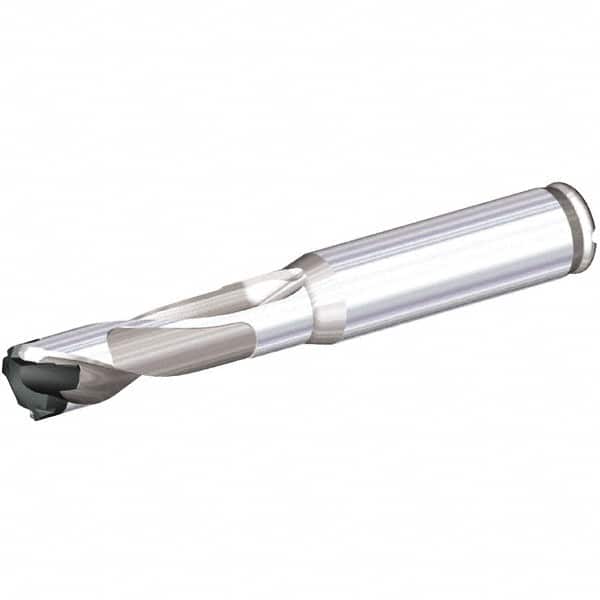

Kennametal - Series KTIP, Head Connection L, 1.5xD, 12mm Diam Straight Shank, Drill Body - 79mm Body Length to Flange, KTIP Toolholder, 11mm Nose Diam, 33mm OAL, 30mm Flute Length, Through Coolant
Item #: 37920303
Brand: Kennametal
Model #: 4129449
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KTIP |
| Head Connection Size | L |
| Drill Depth by Diameter Ratio | 1.5xD |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Drill Body Length to Flange (mm) | 79.00 |
| Drill Body Length to Flange (Decimal Inch) | 3.1100 |
| Toolholder Style | KTIP |
| Nose Diameter (mm) | 11.00 |
| Nose Diameter (Decimal Inch) | 0.4331 |
| Overall Length (mm) | 33.00 |
| Overall Length (Decimal Inch) | 1.2992 |
| Gage Length (mm) | 27.30 |
| Gage Length (Decimal Inch) | 1.0748 |
| Flute Length (mm) | 30.00 |
| Flute Length (Decimal Inch) | 1.1810 |
| Shank Type | Straight Shank |
| Shank Length (mm) | 46.00 |
| Shank Length (Decimal Inch) | 1.8110 |
| Through Coolant | Through Coolant |
