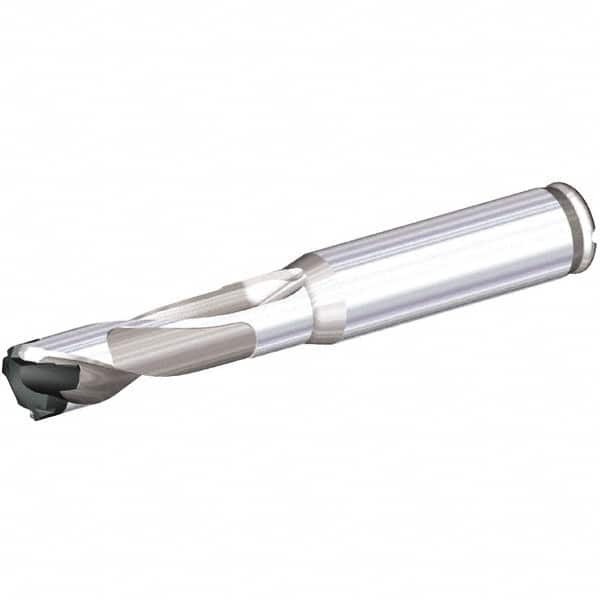

Kennametal - Series KTIP, Head Connection M, 1.5xD, 12mm Diam Straight Shank, Drill Body - 80mm Body Length to Flange, KTIP Toolholder, 11.5mm Nose Diam, 34mm OAL, 31mm Flute Length, Through Coolant
Item #: 37920287
Brand: Kennametal
Model #: 4129450
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KTIP |
| Head Connection Size | M |
| Drill Depth by Diameter Ratio | 1.5xD |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Drill Body Length to Flange (mm) | 80.00 |
| Drill Body Length to Flange (Decimal Inch) | 3.1500 |
| Toolholder Style | KTIP |
| Nose Diameter (mm) | 11.50 |
| Nose Diameter (Decimal Inch) | 0.4528 |
| Overall Length (mm) | 34.00 |
| Overall Length (Decimal Inch) | 1.3386 |
| Gage Length (mm) | 28.00 |
| Gage Length (Decimal Inch) | 1.1024 |
| Flute Length (mm) | 31.00 |
| Flute Length (Decimal Inch) | 1.2200 |
| Shank Type | Straight Shank |
| Shank Length (mm) | 46.00 |
| Shank Length (Decimal Inch) | 1.8110 |
| Through Coolant | Through Coolant |
