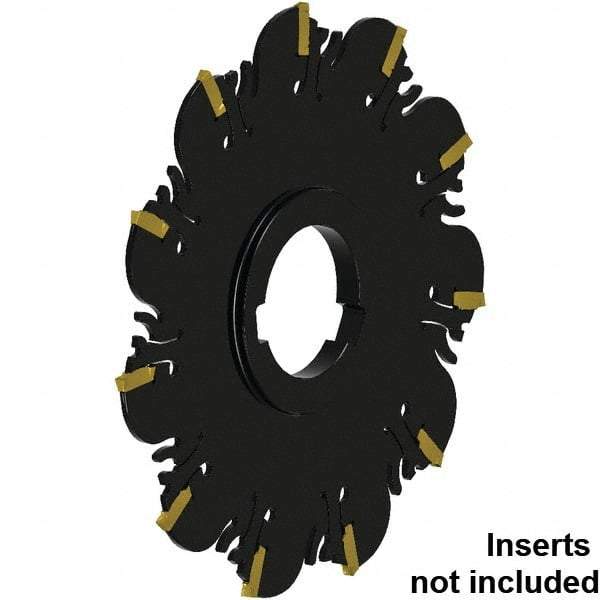

Kennametal - Arbor Connection, 0.165" Cutting Width, 51.7mm Depth of Cut, 160mm Cutter Diam, 40mm Hole Diam, 10 Tooth Indexable Slotting Cutter - 40mm Shank Diam, FDA Toolholder, XCP42... Insert, Neutral Cutting Direction
Item #: 37920279
Brand: Kennametal
Model #: 5614842
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (mm) | 4.20 |
| Cutting Width (Decimal Inch) | 0.1650 |
| Maximum Depth of Cut (mm) | 51.70 |
| Cutter Diameter (mm) | 160.00 |
| Hole Diameter (mm) | 40.00 |
| Shank Diameter (mm) | 40.00 |
| Number of Teeth | 10 |
| Toolholder Style | FDA |
| Series | KNS |
| Insert Style | XCP42... |
| Staggered Tooth | No |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Neutral |
| Insert Holding Method | Clamp |
| Maximum RPM | 533 |
| Maximum Cutting Width (mm) | 6.00 |
| Hub Diameter (mm) | 55.00 |
