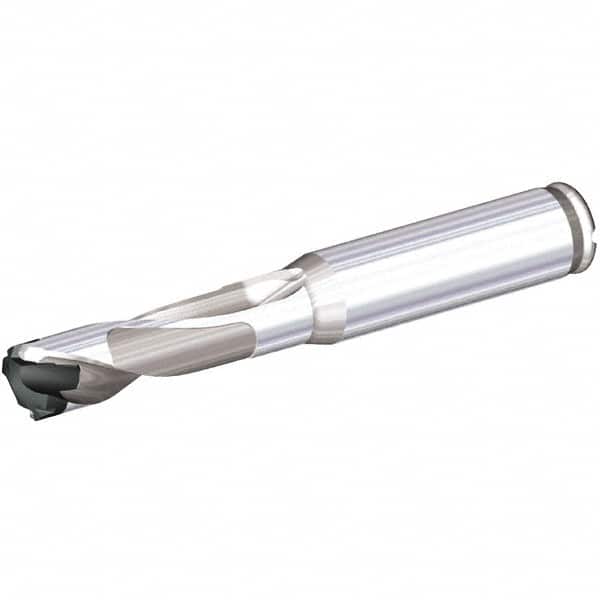

Kennametal - Series KTIP, Head Connection F, 1.5xD, 10mm Shank Diam, Drill Body - 66.5mm Drill Body Length to Flange, KTIP Toolholder, 8mm Nose Diam, 66.5mm OAL, 66.5mm Drill Body Length, 22.5mm Flute Length, Straight Shank, Through Coolant
Item #: 37919305
Brand: Kennametal
Model #: 4129443
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KTIP |
| Head Connection Size | F |
| Drill Depth by Diameter Ratio | 1.5xD |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Drill Body Length to Flange (mm) | 66.50 |
| Drill Body Length to Flange (Decimal Inch) | 2.6180 |
| Toolholder Style | KTIP |
| Nose Diameter (mm) | 8.00 |
| Nose Diameter (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 66.50 |
| Overall Length (Decimal Inch) | 2.6180 |
| Gage Length (mm) | 66.50 |
| Gage Length (Decimal Inch) | 2.6180 |
| Flute Length (mm) | 22.50 |
| Flute Length (Decimal Inch) | 0.8860 |
| Shank Type | Straight Shank |
| Shank Length (mm) | 41.00 |
| Shank Length (Decimal Inch) | 1.6142 |
| Through Coolant | Through Coolant |
