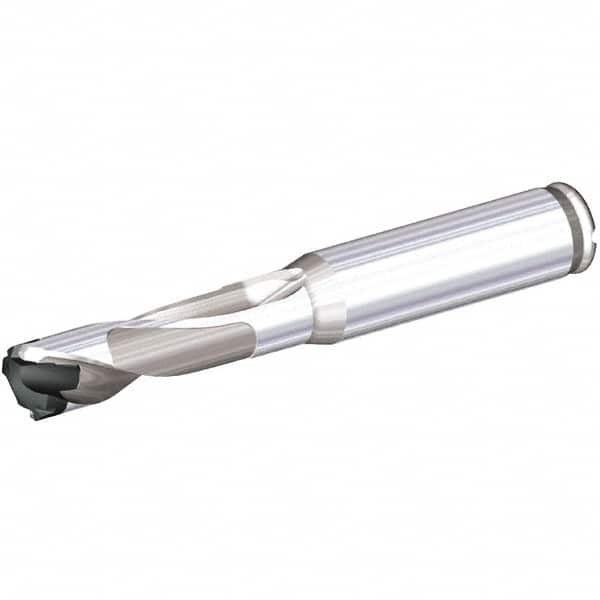

Kennametal - Series KTIP, Head Connection I, 1.5xD, 10mm Shank Diam, Drill Body - 70mm Drill Body Length to Flange, KTIP Toolholder, 9.5mm Nose Diam, 70mm OAL, 70mm Drill Body Length, 26mm Flute Length, Straight Shank, Through Coolant
Item #: 37919271
Brand: Kennametal
Model #: 4129446
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KTIP |
| Head Connection Size | I |
| Drill Depth by Diameter Ratio | 1.5xD |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Drill Body Length to Flange (mm) | 70.00 |
| Drill Body Length to Flange (Decimal Inch) | 2.7560 |
| Toolholder Style | KTIP |
| Nose Diameter (mm) | 9.50 |
| Nose Diameter (Decimal Inch) | 0.3740 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7560 |
| Gage Length (mm) | 70.00 |
| Gage Length (Decimal Inch) | 2.7560 |
| Flute Length (mm) | 26.00 |
| Flute Length (Decimal Inch) | 1.0240 |
| Shank Type | Straight Shank |
| Shank Length (mm) | 41.00 |
| Shank Length (Decimal Inch) | 1.6142 |
| Through Coolant | Through Coolant |
