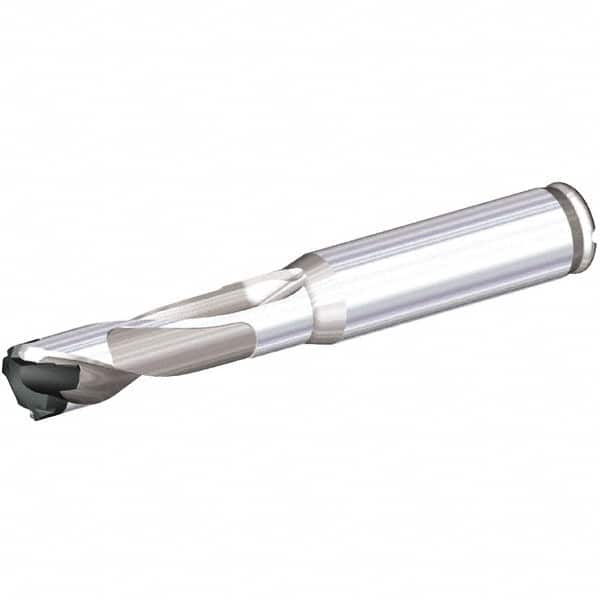

Kennametal - Series KTIP, Head Connection J, 1.5xD, 12mm Shank Diam, Drill Body - 76.5mm Drill Body Length to Flange, KTIP Toolholder, 10mm Nose Diam, 76.5mm OAL, 76.5mm Drill Body Length, 27.5mm Flute Length, Straight Shank, Through Coolant
Item #: 37919263
Brand: Kennametal
Model #: 4129447
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | KTIP |
| Head Connection Size | J |
| Drill Depth by Diameter Ratio | 1.5xD |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Drill Body Length to Flange (mm) | 76.50 |
| Drill Body Length to Flange (Decimal Inch) | 3.0120 |
| Toolholder Style | KTIP |
| Nose Diameter (mm) | 10.00 |
| Nose Diameter (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 76.50 |
| Overall Length (Decimal Inch) | 3.0120 |
| Gage Length (mm) | 76.50 |
| Gage Length (Decimal Inch) | 3.0120 |
| Flute Length (mm) | 27.50 |
| Flute Length (Decimal Inch) | 1.0830 |
| Shank Type | Straight Shank |
| Shank Length (mm) | 46.00 |
| Shank Length (Decimal Inch) | 1.8110 |
| Through Coolant | Through Coolant |
