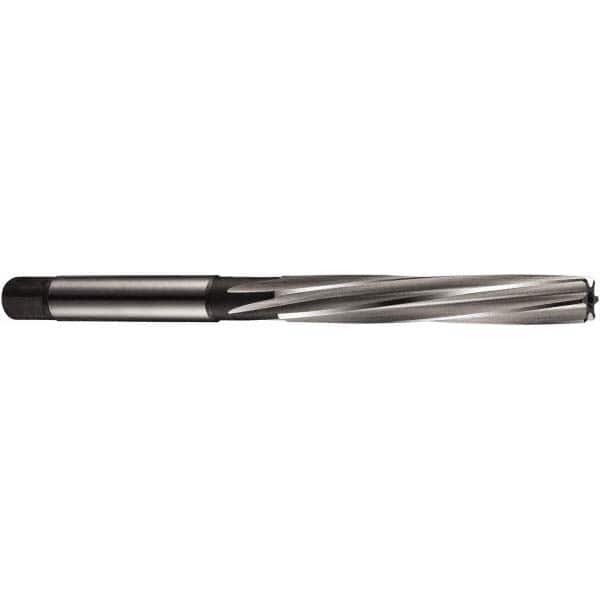

DORMER - 3/16" Diam, Straight Shank, 44mm Flute, Hand Reamer
Item #: 80988066
Brand: DORMER
Model #: 0179673
Features and Benefits
Standard reamers are constructed with a fixed diameter. They are used only for holes that have a diameter equal to the reamer.
Spiral flute reamers are used in blind and through-hole operations. They are able to bridge interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (mm) | 4.76 |
| Reamer Diameter (Decimal Inch) | 0.1875 |
| Reamer Diameter (Inch) | 3/16 |
| Shank Type | Straight |
| Variable Diameter Reamer Type | None |
| Flute Type | Spiral |
| Flute Length (mm) | 44 |
| Overall Length (mm) | 87 |
| Overall Length (Decimal Inch) | 3.43 |
| Number of Flutes | 6 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright/Oxide |
| PSC Code | 5133 |
