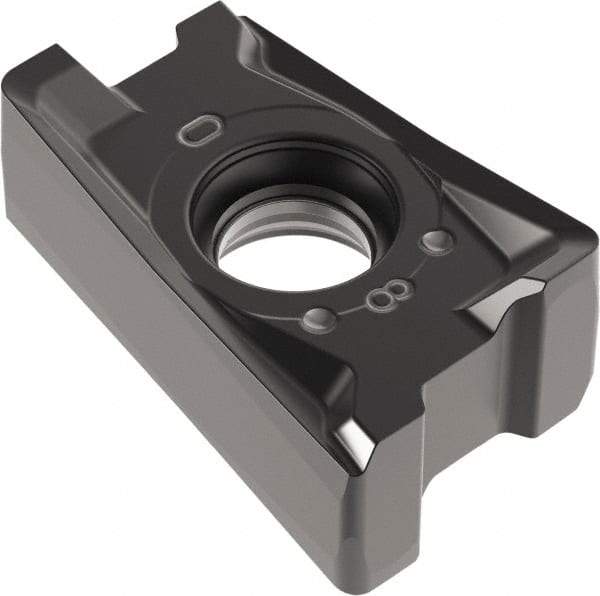

Kennametal - LNGU432 GE Grade KCSM40 Carbide Milling Insert - AlTiN/TiN Finish, 3/16" Thick, 0.8mm Corner Radius
Item #: 37857190
Brand: Kennametal
Model #: 6165397
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNGU |
| Insert Size | 432 |
| Material | Carbide |
| Manufacturer's Grade | KCSM40 |
| Coating | AlTiN/TiN |
| Width (mm) | 6.50 |
| Length (Inch) | 31/64 |
| Length (Decimal Inch) | 0.4844 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 3.40 |
| Coating Process | PVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | GE |
| Manufacturers Catalog Number | LNGU432SRGE |
